QDP-4016 34mm H38/1.5" 0Mil

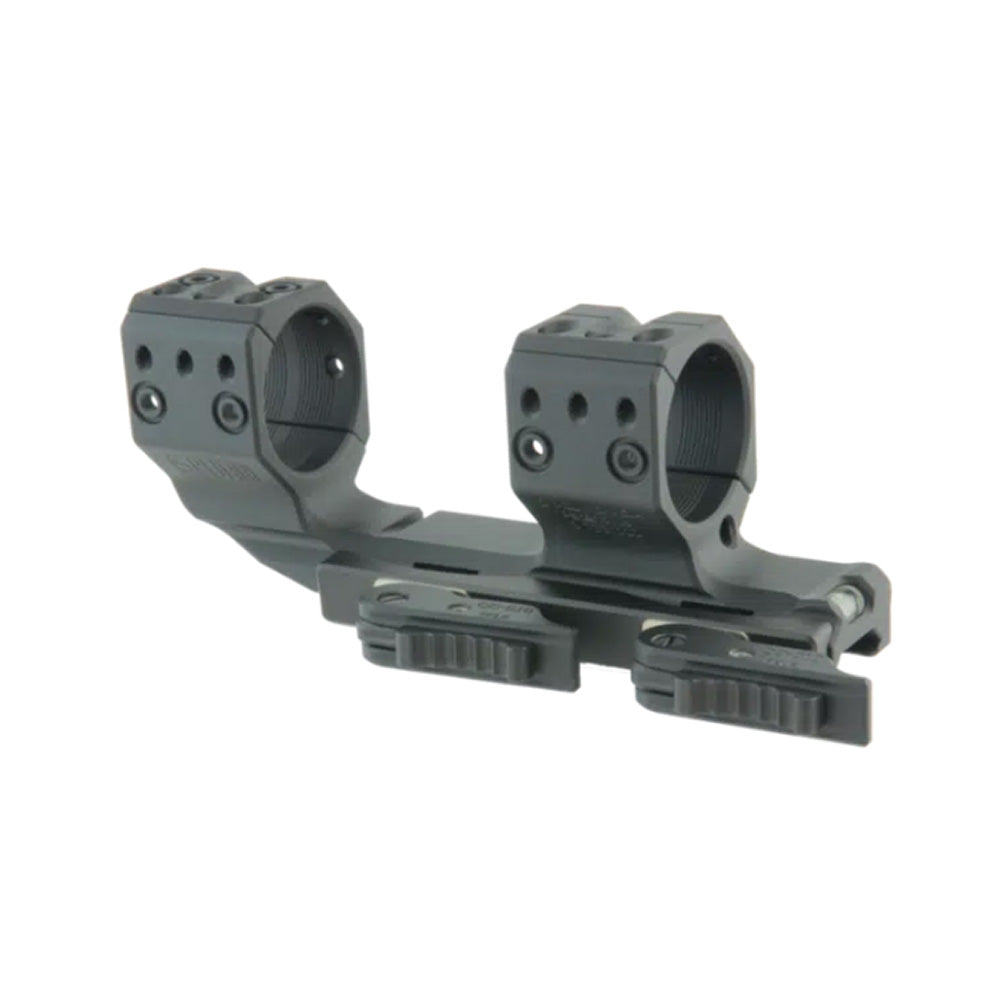

Quick detachable cantilever mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body. Absolute co-witness most clip-on NV units on AR platforms. Allows the scope to be mounted 40 mm/1.57” farther forward than with a non-cantilever mount.

0 MIL/MOA
Height: 38 mm/1.5”
Length: 151 mm/5.94” (mount body only)
Weight: 270 g/9.5 oz

10-degree wedge included

Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of 2021 QDP arms are provided with golden bronze slide locks for minimized friction. As of fall 2023, rear top covers will no longer feature alignment grooves.
